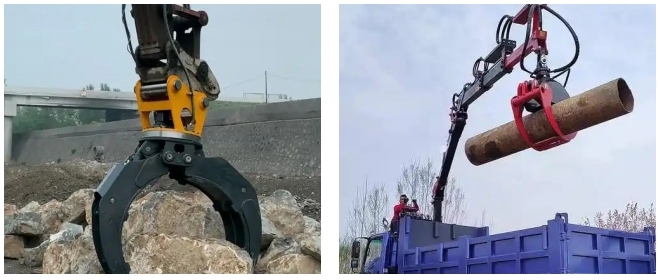

Applicable Object: cooperate with various types ofexcavator auxiliary operation
Product Features:
adopt Sweden nm400 wear-resistant, light weight and wear-resistant.
Axle pin is made of 42CrMo alloy steel with built-in oil passage, high strength an-dgoodtoughne35.
| Item/Model | Weight | Max jaw opening | Hight | Tyo tine width | Three tine widlth |
| Unit | kg | mm | mm² | mm² | mm |
| ZLO4J | 240 | 1100 | 850 | 210 | 350 |
| ZL06J | 410 | 1700 | 1570 | 350 | 580 |
| ZL08J | 800 | 2100 | 1960 | 430 | 730 |
| ZL10J | 1250 | 2500 | 2300 | 505 | 880 |
